Product Details
D009160C115R60
PRODUCT SPECIFICATION
Pitch
3/8"
Gauge
.050"
Saw Chain Series
72series
Type
Replacement
Drive Link
60E
Bar Length
16"
Rivet Count
5

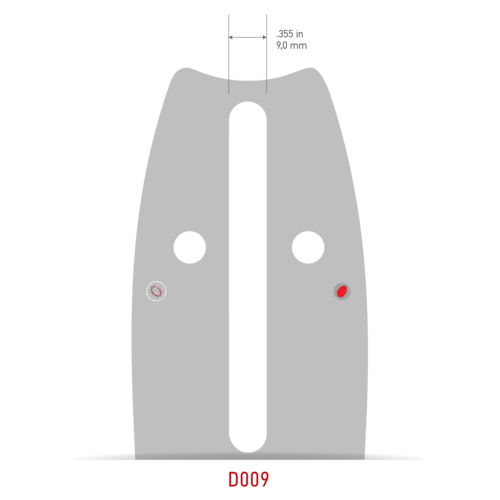

Tail Mount
D009
Enquiry
Description & Details
Description

There is a particular design of nose to make bar have a longer life and manufactured from special alloy steel for high-strength body for resisting the wear extremely. As for the splicing point, which is between the body and the nose, would be fasten by a rivet and held by overlapping ears.


Saws in 62cc and larger.

Details:

· Pitch:3/8”         Gauge:.050”        Length:16”

· Suitable for petrol saws in 62cc and larger used by professional users.

· Suitable for 3/8" 's 72series chains.

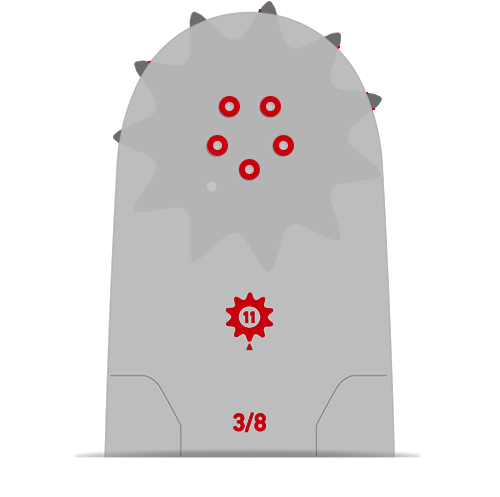

· Sprocket nose is replaceable.

· Special sprocket-nose design increases the life of guide bar by 50% than previous.

· Proven oil-retaining feature prevents oil from running out of the bar's tail, keeps more oil on the bar and chain.

Brand/Model
PARTNER
550,1655,2055,P-55,R-11,R-12,R-14,R-16,R-17,R-18,R-19,S-50,S-55,S-65,650,7000,P-65,P-70,P-85,P-100,R-20,R-21,R-22,R-23,R-30,R-35,R-40,R-416,R-420,R-421,R-435,R-440
SHINDAIWA/SDK/ISEKI
550,575,577,680,695,757,757C,757W
SOLO
603,662,665,667,670,675,680,681,690,694
