Product Details
D025183C115R66
PRODUCT SPECIFICATION
Pitch
3/8"
Gauge
.063"
Saw Chain Series
75series
Type
Replacement
Drive Link
66E
Bar Length
18"
Rivet Count
5

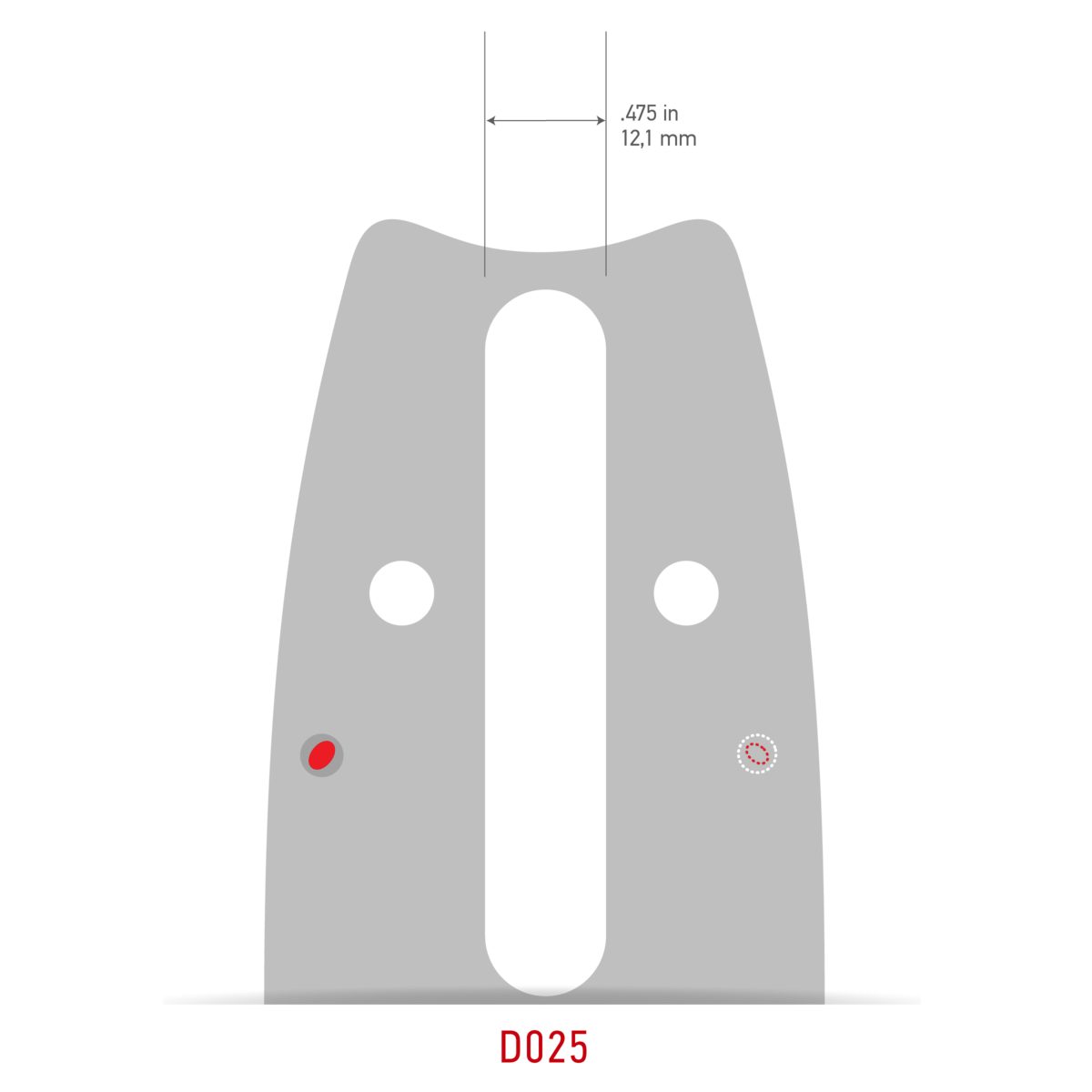

Tail Mount
D025
Enquiry
Description & Details
Description

There is a particular design of nose to make bar have a longer life and manufactured from special alloy steel for high-strength body for resisting the wear extremely. As for the splicing point, which is between the body and the nose, would be fasten by a rivet and held by overlapping ears.


Saws in 62cc and larger.

Details:

· Pitch:3/8          Gauge:.063         Length:18

· Suitable for petrol saws in 62cc and larger used by professional users.

· Suitable for 3/8" 's 75series chains.

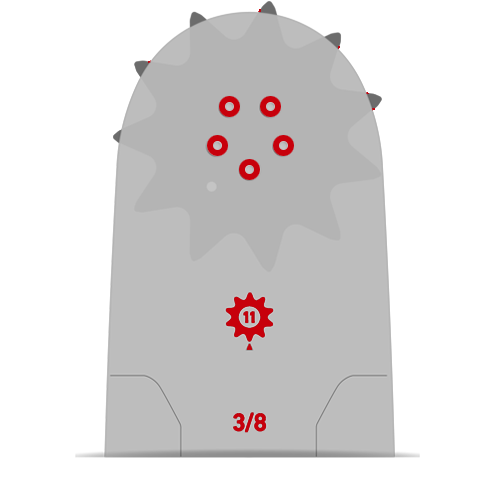

· Sprocket nose is replaceable.

· Special sprocket-nose design increases the life of guide bar by 50% than previous.

· Proven oil-retaining feature prevents oil from running out of the bar's tail, keeps more oil on the bar and chain.

Brand/Model
STIHL
038,038SUPER MAGNUM,039,041,042,044,044M,045,046,046M,048,056,056S,064,066,066MAGNUM,MS440,MS440MAGNUM,MS441,MS441C,MS460,MS460MAGNUM,MS461,MS650,MS660,MS660M,
